Gaming History 101

Know Your Roots

Getting It Backwards

leave a comment »

ds_nesVideo game consoles are one of the most interesting electronics items on the market for several reasons. Probably the most prolific is the fact that there are frequent hardware upgrades, which we call generations, that move home consoles forward. Because each new console is basically a piece of hardware frozen in time, the need to innovate and improve on future games demands that they be constantly updated. This works counter to movies or music, which see improvements from new hardware but don’t require the upgrade to enjoy the medium. Imagine if you could play Super Mario Bros. on the Wii but with drastically upgraded visuals or Dead Space on the original Playstation with the juxtaposed setback, this is exactly what we see when we watch Ghostbusters on VHS versus DVD versus Blu Ray. As a result new consoles come out all the time, typically in 5-8 year intervals, and usher in a more interactive experience – it’s important to note that the greatest difference between games and other media is that they are active, not passive experiences – and with it comes a new format for software.

Enter the concern of the consumer. It can be frustrating for both gamers and parents of gamers alike to purchase a new console, especially when it renders an entire collection on an older console useless. As retro gamers I’m sure we see the value in it, but for the majority there’s a want to move forward and never look back. Well, that is until there are enough new games to get me to migrate over. This is another slow start that prevents all but early adopters to purchase new hardware, which can then result in fewer sales. With fewer sales comes more canceled projects on new hardware, which then results in fewer sales of the hardware and the cycle continues until a console is considered dead in the water. Just look at the Virtual Boy, Jaguar, and possibly even the WiiU about this problem; developers have enough to worry about, they can’t also deal with poor penetration rate due to a false start console. One excellent solution to help usher in that awkward period between consoles is the concept of backwards compatibility, or a new console that can play a previous generation’s games.

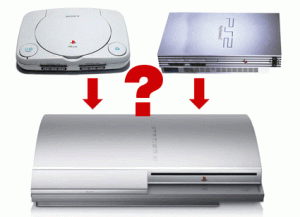

bc_SonyBackwards compatibility started off as mostly an afterthought, typically triggered by a new console’s use of inexpensive available hardware for another component in a new console. For the most part this was sound boards – the Genesis used a Master System processor for sound as did the Playstation processor for PS2’s I/O port. That made it easy: either use a firmware initialization string or hardware bypass to force the sound chip to be used as the older hardware rather than its intended use. This isn’t always the case, though, and many consoles utilized such drastically new hardware or are so complicated in architecture that making a new console backwards compatible is impossible. All three main console manufacturers ran into this problem with the current generation and had to increase the cost of the machine to prevent lack of backwards compatibility from being an issue. In the case of Nintendo, extra components were installed to make Gamecube accessories and media possible, while the similar architecture of the Wii allowed it to become an overpowered Gamecube. Microsoft had an entire new hardware architecture and opted for software compatibility, which was terrible when it first launched and unnecessary when it was fully integrated. It still shocks me how many people don’t know the poor quality of many original Xbox titles on 360 and how many of the console’s best games are completely unplayable. Sony, fearful of what they saw with Microsoft and holding the largest console library of all time with the PS2, opted to just shove an entire PS2 motherboard into the PS3, making it the biggest console of all time (so far) and costing up to $600 at launch. This was the point at which both the industry and gamers found their limits and suddenly backwards compatibility may not have been all that important. At this point no one cares about backwards compatibility in modern consoles, it has been stripped from Wii and PS3 (which generated significant price drops), and the previous consoles are so cheap that they are worth re-purchasing if absolutely necessary.

It’s important to keep your eyes on the prize and prepare for the next generation of consoles, all of which will be available by this holiday season. Backwards compatibility is good, but rarely is it as good as the original and it will never be worth the expense. Before giving a used retailer your PS3 or 360 for a mere $50-$100 off your new expensive console, consider holding on to it just in case. Like a hard drive in a 360, you’ll surely find it saves you money in the long run. After all, isn’t it about time you joined this retro gaming revolution?

Okay, so here’s why you probably clicked on this article in the first place, the list of backwards compatible consoles. Below is not only the list, but an explanation as to how each console achieves it (mildly technical):

  • ColecoVision: With an add-on, which provided the necessary chipsets to do so, the ColecoVision could become an Atari 2600, however there were almost no similarities in hardware (which explains the need for the add-on). This was legally allowed because Atari didn’t use proprietary hardware and thus it was like two manufacturers making the same specs on a PC. Unfortunately for Atari, this hit came twice as hard because the 5200 was not backwards compatible either. With the courts ruling in the favor of Coleco, they even created a clone system called the “Coleco Gemini” that was, chip for chip, an Atari 2600 and sold it in stores.
Coleco Gemini (Atari 2600 Clone)

Coleco Gemini (Atari 2600 Clone)

  • Atari 7800: This was the first console to actually be backwards compatible and played both 7800 and 2600/VCS games, but not 5200. Atari fans were livid with the 5200’s lack of 2600 backwards compatibility, which made sense considering the 5200 contained updated versions of most of the 2600 library. The 7800 ran a SALLY 6502 processor, which could be slowed to 1.19 Mhz and thus operate like the stripped 6507 of the 2600, and then a television interface chip created graphics/sound while adapted chipsets allowed the 7800 to function with limits to the confines of the 2600. This would have been implemented sooner than the late release window of the 7800 had the console not been shelved for over two years after the video game crash.
    Known Issues: Atari integrated a content lock-out chip that blocked adult 2600 games (Custer’s Revenge, etc).
  • Sega Genesis/Mega Drive: The Sega Genesis may have used a 68000 processor for its “blast processing” but it also used the Master System’s Z80 processor for its sound chip. Thanks to an add-on called the “Power Base Converter”, which plugged into the cartridge slot and gave the Genesis a Master System cart/card slot, the 68000 was deactivated and the Z80 took over. This made the Genesis literally turn into a Master System, which was one of the first to do so thanks to the previous console’s co-processor chip.
  • Gameboy Color: While it may seem to be a no-brainer, the Gameboy Color actually has significantly more processing power, RAM, and palette as its predecessor. This is why you cannot play Gameboy Color games in a Gameboy, it just can’t keep up. On the other hand, the Gameboy Color was backwards compatible with Gameboy thanks to a few of its similarities. For starters the Sharp LR35902 processor was merely an adapted (possibly overclocked) version of the Gameboy’s Z80 processor, screen resolution and cartridges were the same, and RAM was merely three of the Gameboy’s RAM chips. As a result the machine could be locked off into “Gameboy” mode, much like the 7800 could do for 2600 games, and the four hues of green on the Gameboy were adapted into multiple color pre-sets that the user could choose from.
  • Gameboy Advance: Like many other consoles, the Gameboy Advance used a Z80 coprocessor for its sound chip. This allowed the console to play both Gameboy and Gameboy Color games by simply making the co-processor function as the only processor. Pressing L and R buttons allowed you to toggle between the original resolution and a stretched version in the larger GBA resolution.
  • Playstation 2: It’s hard to find good techinical data on the topic, but I’m fairly certain that the I/O port processor, or the device that reads the media and transfers it to the hardware, utilized the PS1’s R3051 33 Mhz processor. This meant that when it was reading a disc and detected it was a PS1 game, it could stop sending information to the PS2 and simply function as a PS1 instead. Having no true knowledge about how these consoles work beyond that, I can’t tell you for sure how it was able to control all other aspects of the system needed to play PS1 games, but that’s how it was able to do so.
    Known Issues: Due to the console not having the true hardware configuration of the PS1, there is a short list of games incompatible with the PS2 depending on your console. Oddly enough, the slimline model was even incompatible with some PS2 games.
  • Nintendo DS: Nintendo definitely wants to keep its legacy alive, and repurposing the chipsets of older consoles is an inexpensive way to innovate, but the DS was the first console not compatible with all previous consoles. While it does technically have all the hardware needed to play all previous portables, the DS only has a cartridge slot for the Gameboy Advance and the later DSi and DSi XL models have removed that slot completely. Still, for those that have a DS or DS Lite (preferred), you can run any GBA game you like on it.
  • Xbox 360: Light years had passed, technologically speaking, between the original Xbox and the 360 even though ironically only four short years had passed in actual time. The 360 and its predecessor were both basically streamlined computers and their hardware configurations were so diverse that it would be impossible to have the 360 function like an Xbox. Microsoft’s solution was software emulation. With a scant 733 Mhz Pentium III in the Xbox and a beefy 3.2 Ghz multi-core PowerPC in the 360 the console was basically running an emulator when it plays Xbox games. As with most emulators, especially early on, the results are scattered with lots of odd effects. It’s not true backwards compatibility.
    Known Issues: Plenty. It was such a headache that after only two major updates Microsoft discontinued support. A large number of games will work, although the setbacks can be as simple as ghosting in Halo 2 and as drastic as the crawling framerate of KOTOR.
  • Playstation 3: Sony’s answer shows the extensive hubris they had in the wake of the Playstation 2: jack the price of the console up $150 and slam an actual PS2 into it. There’s no reason to have the PS2 hardware in the console except to play Playstation 2 games, which accounts for the massive size and equally massive price tag. It has some value, though, because these early models provide significant graphical upgrades over the PS2 and are the best way to play its games. Eventually the PS3 dropped the hardware, resulting in a $200 retail price drop for the console, and attempted software emulation that came with a whole new batch of issues. Nowadays, and since 2009, the PS3 has had no PS2 backwards compatibility whatsoever. If you’re looking today, any launch 60GB and 20GB model is fully backwards compatible with PS2 because it has a literal PS2 built in. Any 2008-June 2009 80GB models are software backwards compatible, which is best tested by popping a PS2 game into the console and seeing if it plays. The gunmetal grey Metal Gear Solid limited edition 80GB console is also software backwards compatible. All models of the PS3, including the slim models, support PS1 games. There are PS2 games available on the PSN, which are re-programmed to support the PS3 hardware.
    Known Issues: Original 60GB and 20GB have no issues, they are essentially PS2s as well. Software emulation has a long list of unsupported games and issues just as the 360 does.

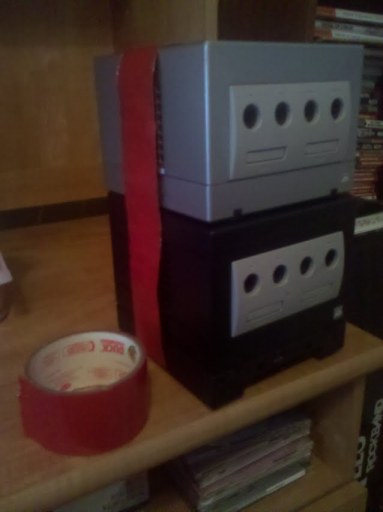

Original Wii Prototype

Original Wii Prototype

  • Wii: The age old joke is that the Wii is two Gamecubes duct taped together in the box. While this is not true, there is some truth behind it. The Gamecube and Wii use an IBM PowerPC processor and ATI graphics architecture in the same configuration, which basically means the Wii is a mildly souped up version. As a result, the Wii can easily re-create the Gamecube library by literally adjusting the processor speeds. In 2012, Nintendo discontinued Gamecube backwards compatibility, which can be determined by searching the outside of the console for Gamecube controller ports.
    Known Issues: For the most part, none. All backward compatible Wiis are also Gamecubes. There are some limited hardware issues when trying to play hardware-specific games or integrate accessories like the Gameboy Advance cable.

Written by Fred Rojas
